These are modern replacements for the black plastic T-knob-style wing nuts and wing bolts used on late-'70s and early-'80s Ludwig Hercules hardware, as well as on many other Ludwig components such as tom holders, bass drum spurs, and accessory mounts.
Available in several thread sizes and styles, these replacement handles are made from solid cast polymer and are much more durable than many of the original plastic versions. They can also be used as replacements or upgrades on other brands and models of drum hardware where the thread size and length are compatible.
Notes I have done my best to track down the original information and match these parts to Ludwig catalogs, parts lists, and hardware from the period. I believe the information below is quite accurate, but Ludwig did use different thread sizes on some components over the years - particularly spur brackets and bass drum tom mounts. Because of that, I always recommend double-checking the thread size and bolt length on your existing hardware before ordering.
If you have additional information, corrections, or another known application for one of these parts, I would be glad to hear it.
| Part # | Size | Type | Notes |
|---|---|---|---|

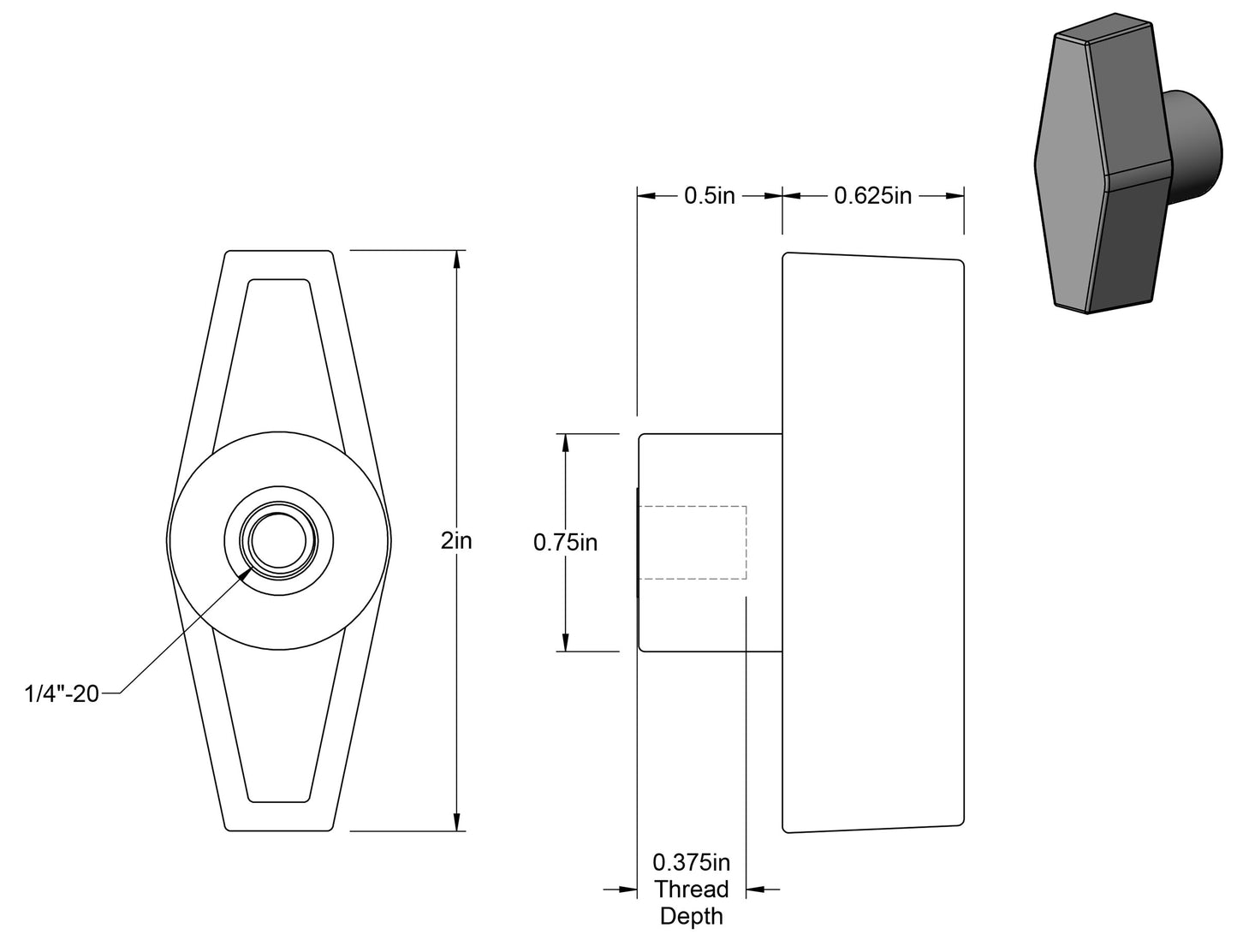

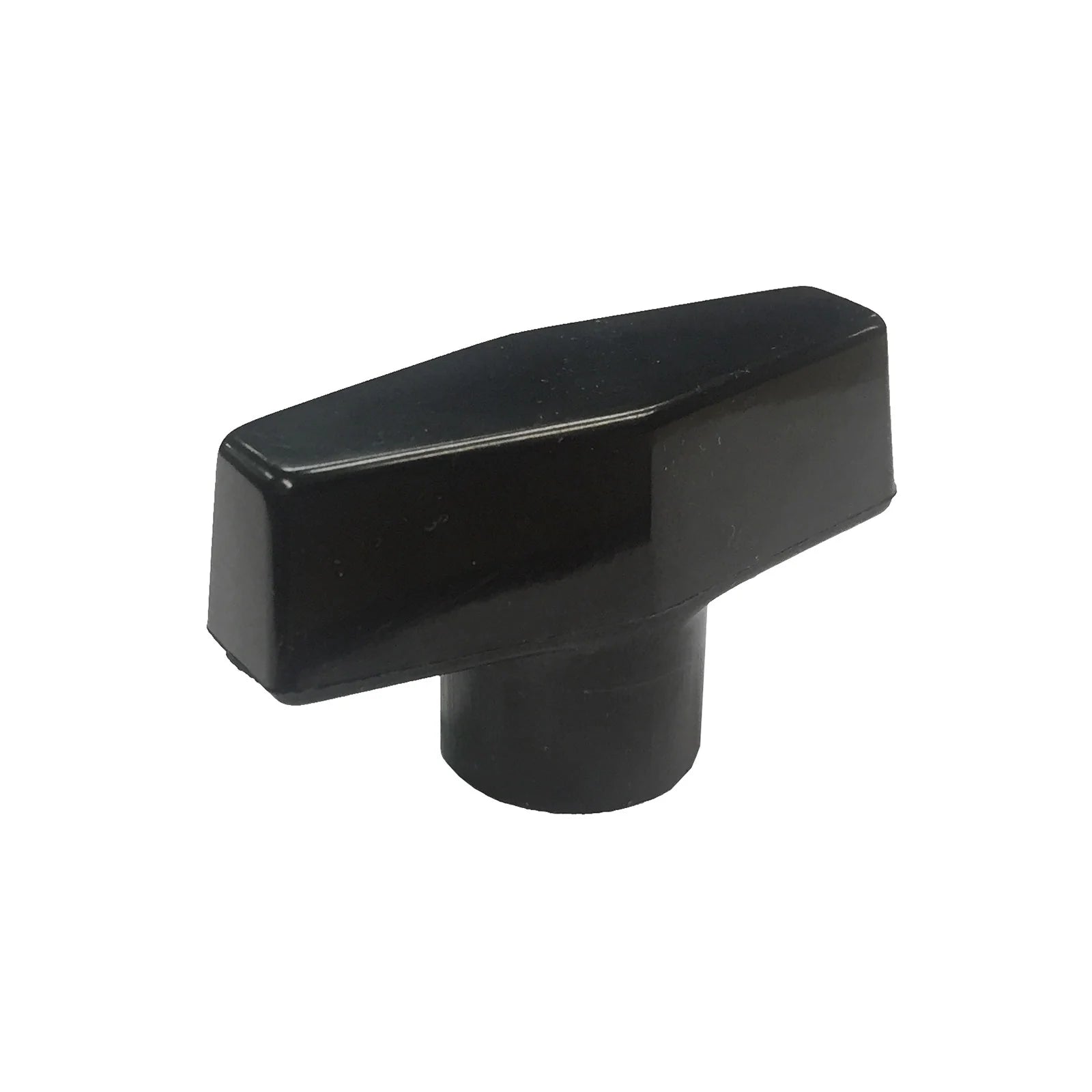

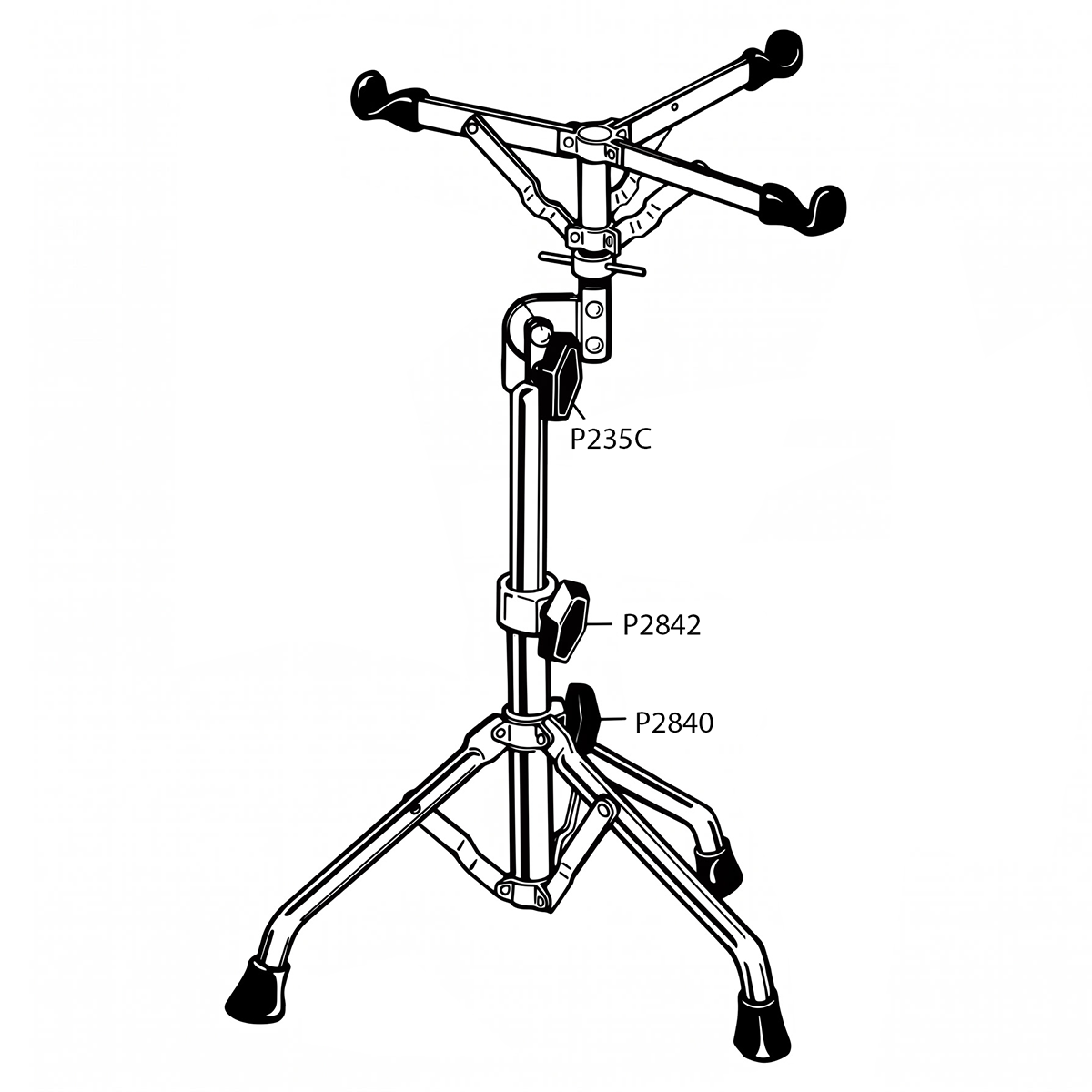

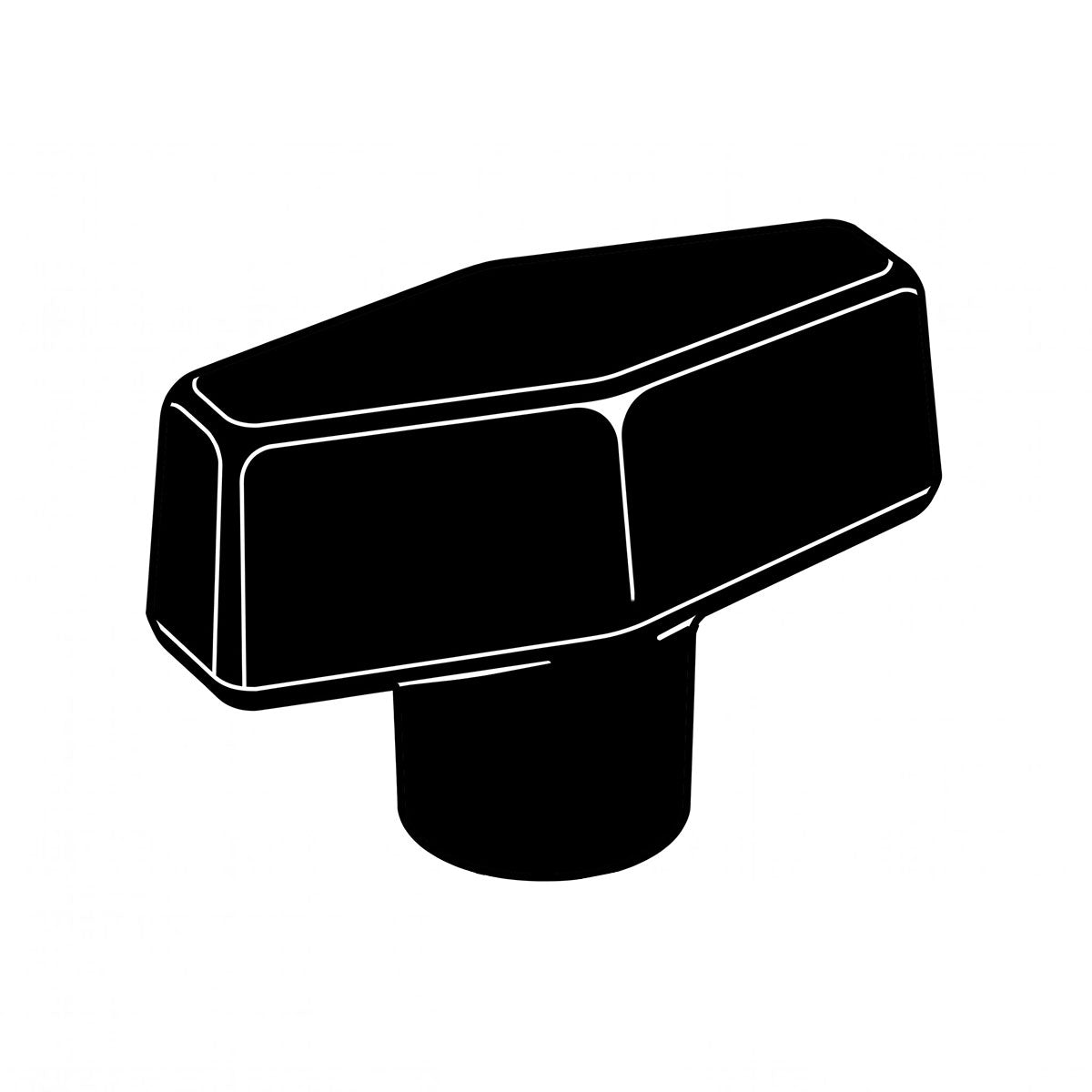

| P235C | 1/4-20 | Female wing nut | Originally sold as a set with a carriage bolt and washer; this listing is for the wing nut only. Used on several Ludwig snare stands for the basket tilt adjustment. |

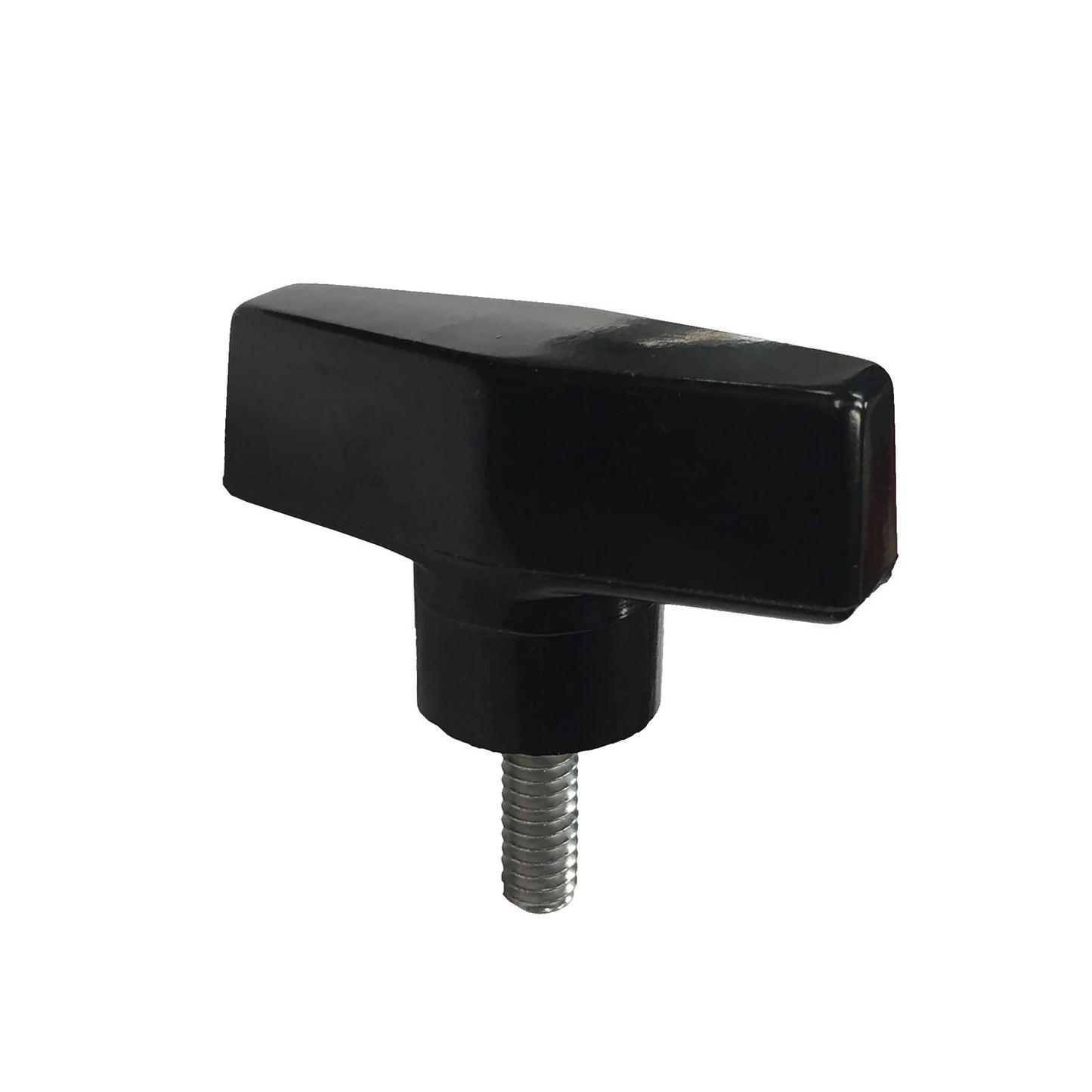

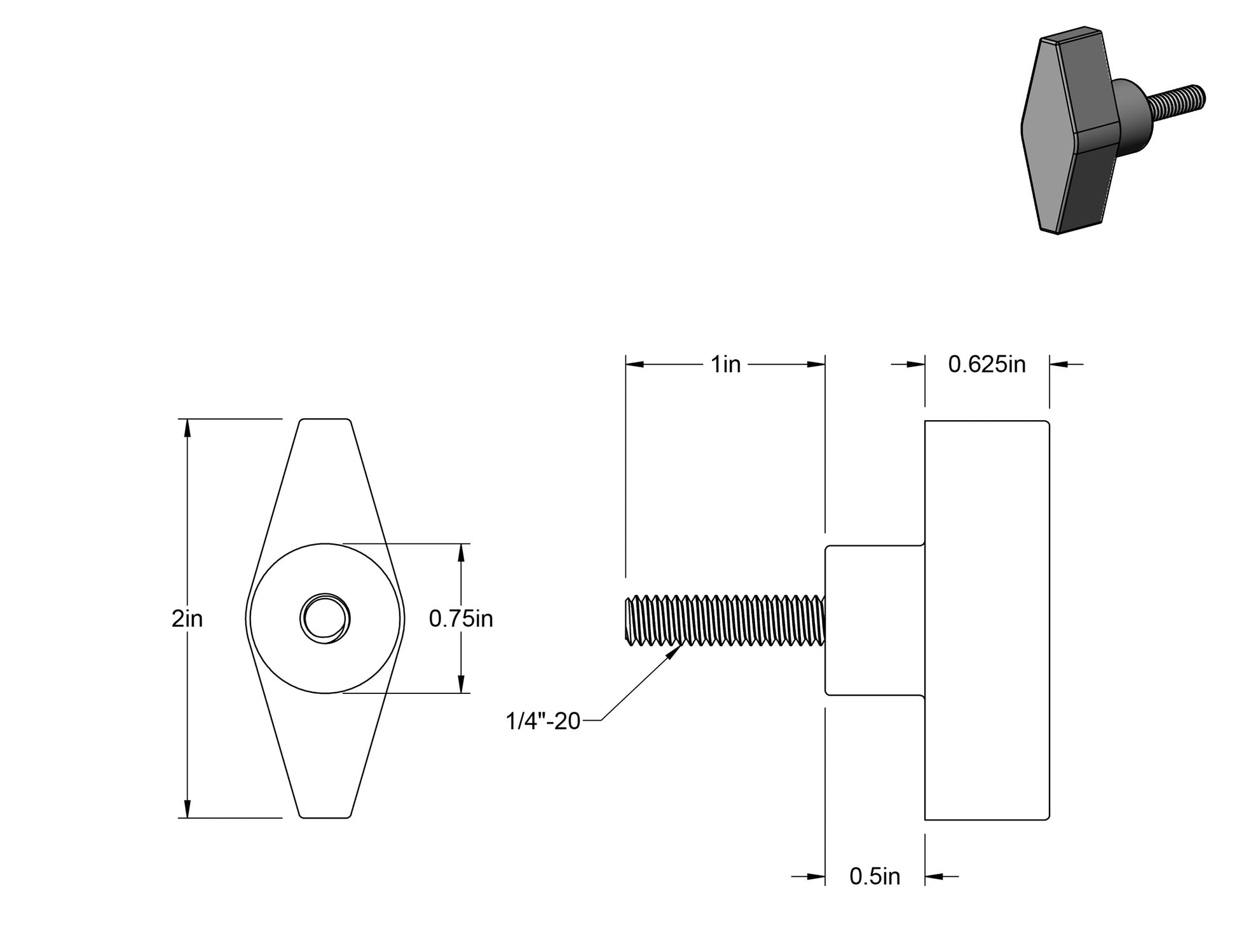

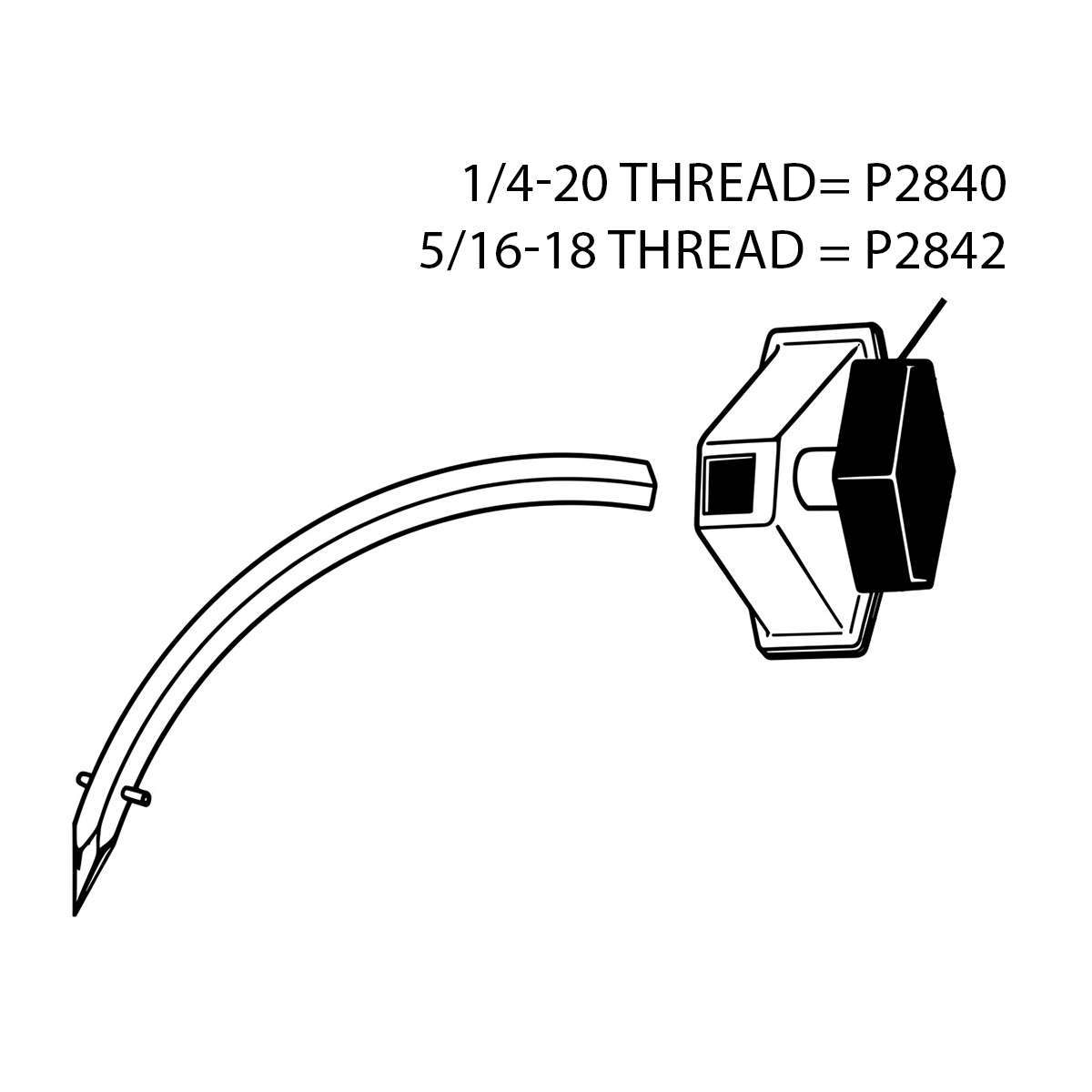

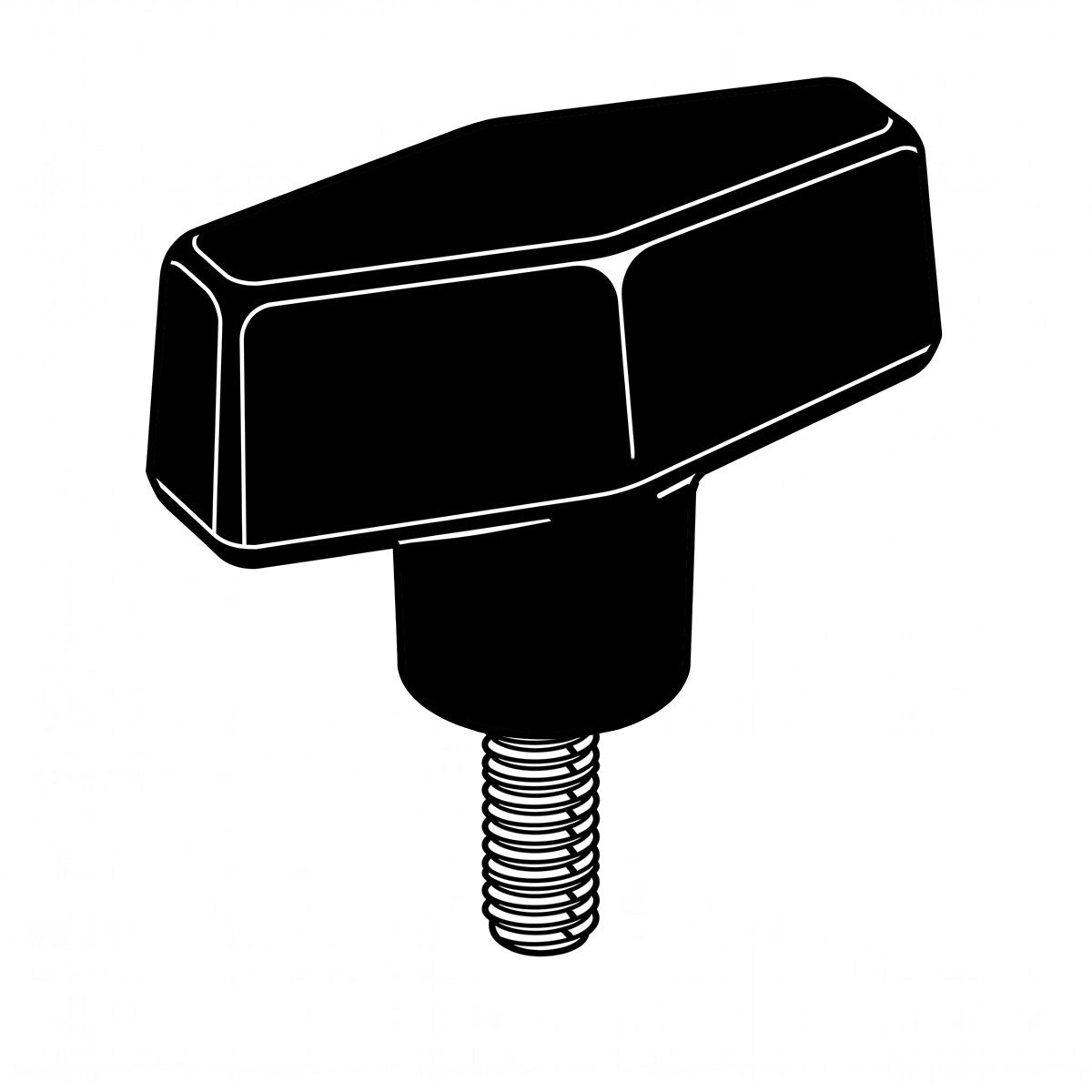

| P2840 | 1/4-20 × 1" | Male wing bolt | Used on spur brackets, fold-up leg bases, and height adjustments on lighter stands such as the 1123 hi-hat stand and 1355 snare stand. * This replacement is slightly longer than the original P2840. In many applications, the shorter P2846 can be substituted instead, so check your hardware before ordering. |

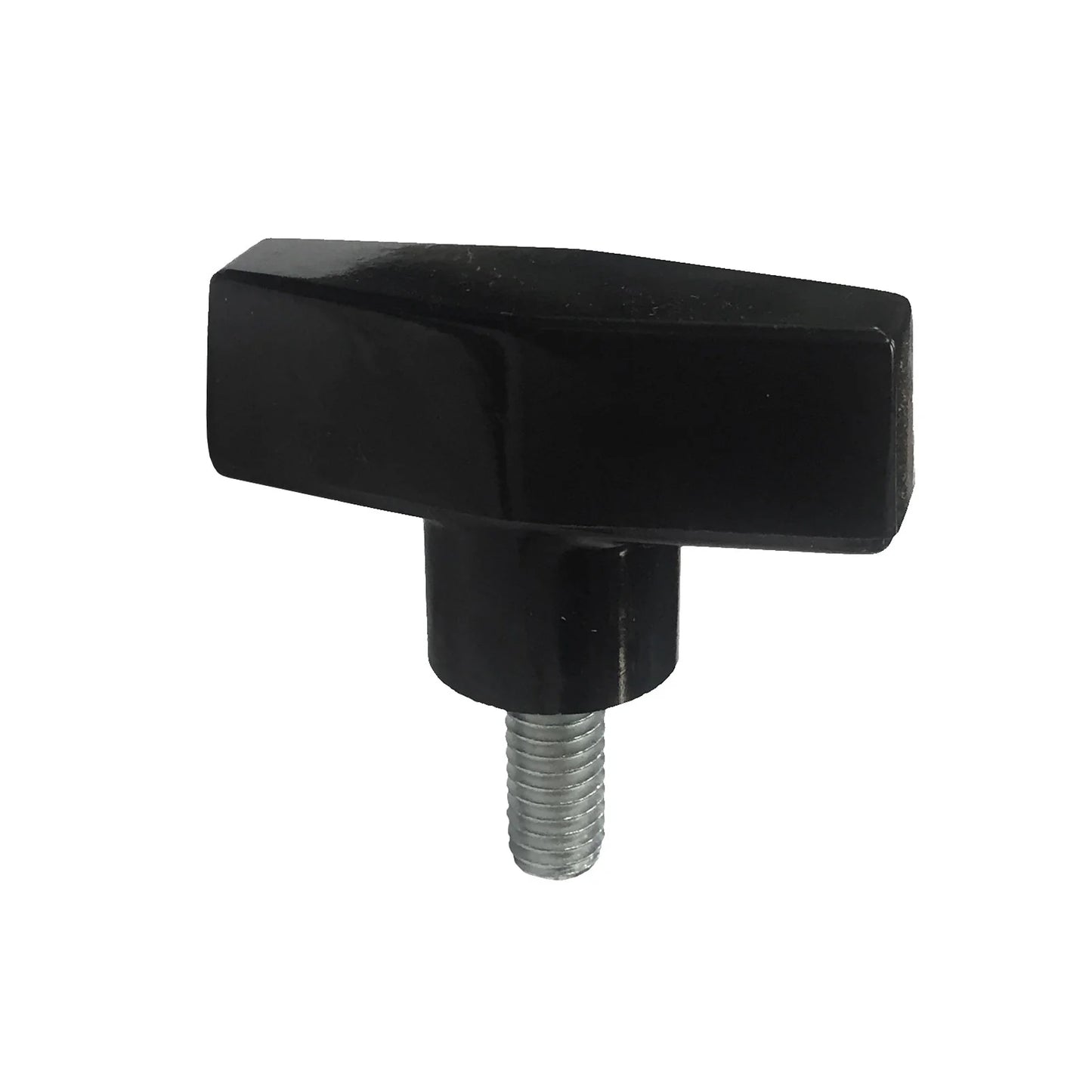

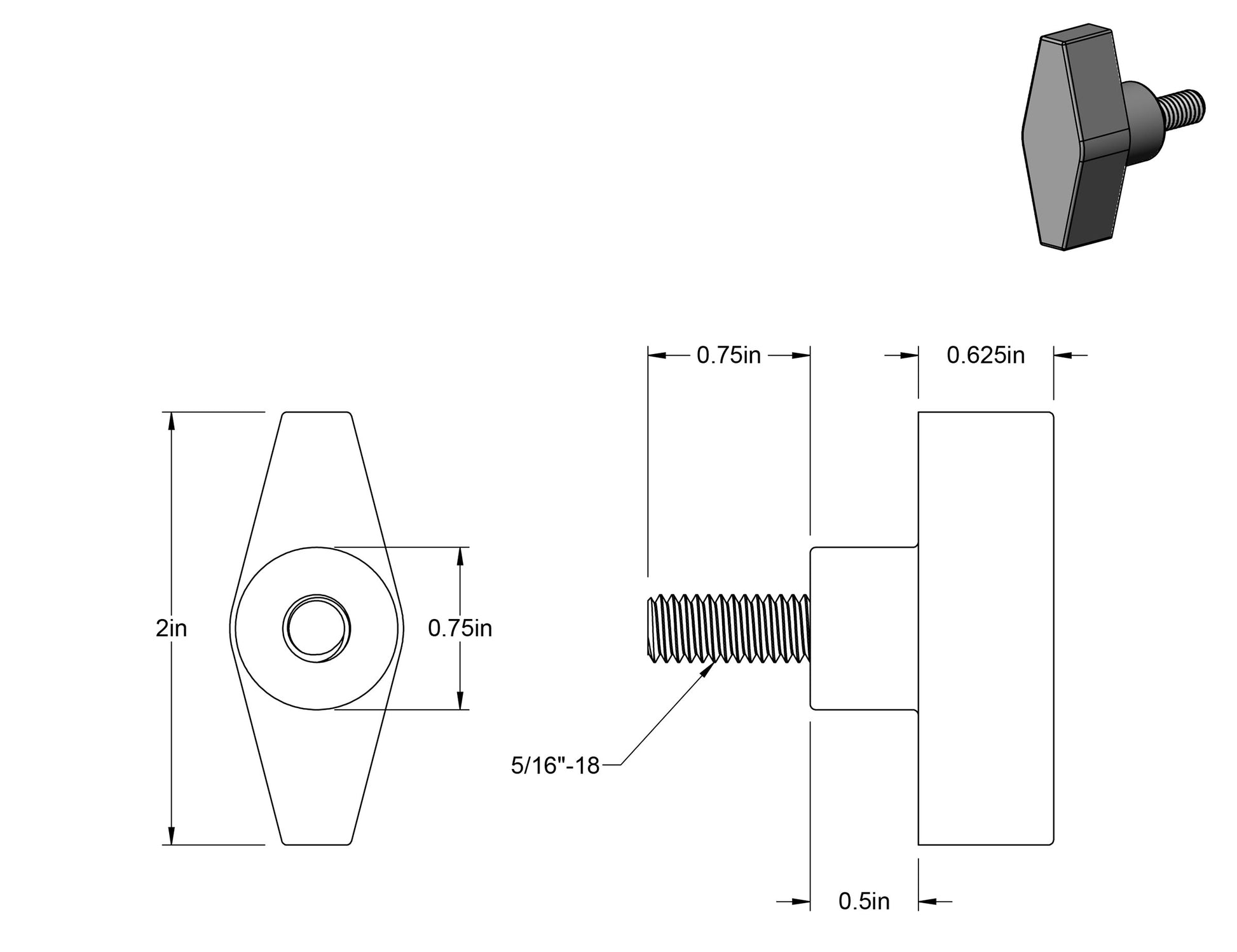

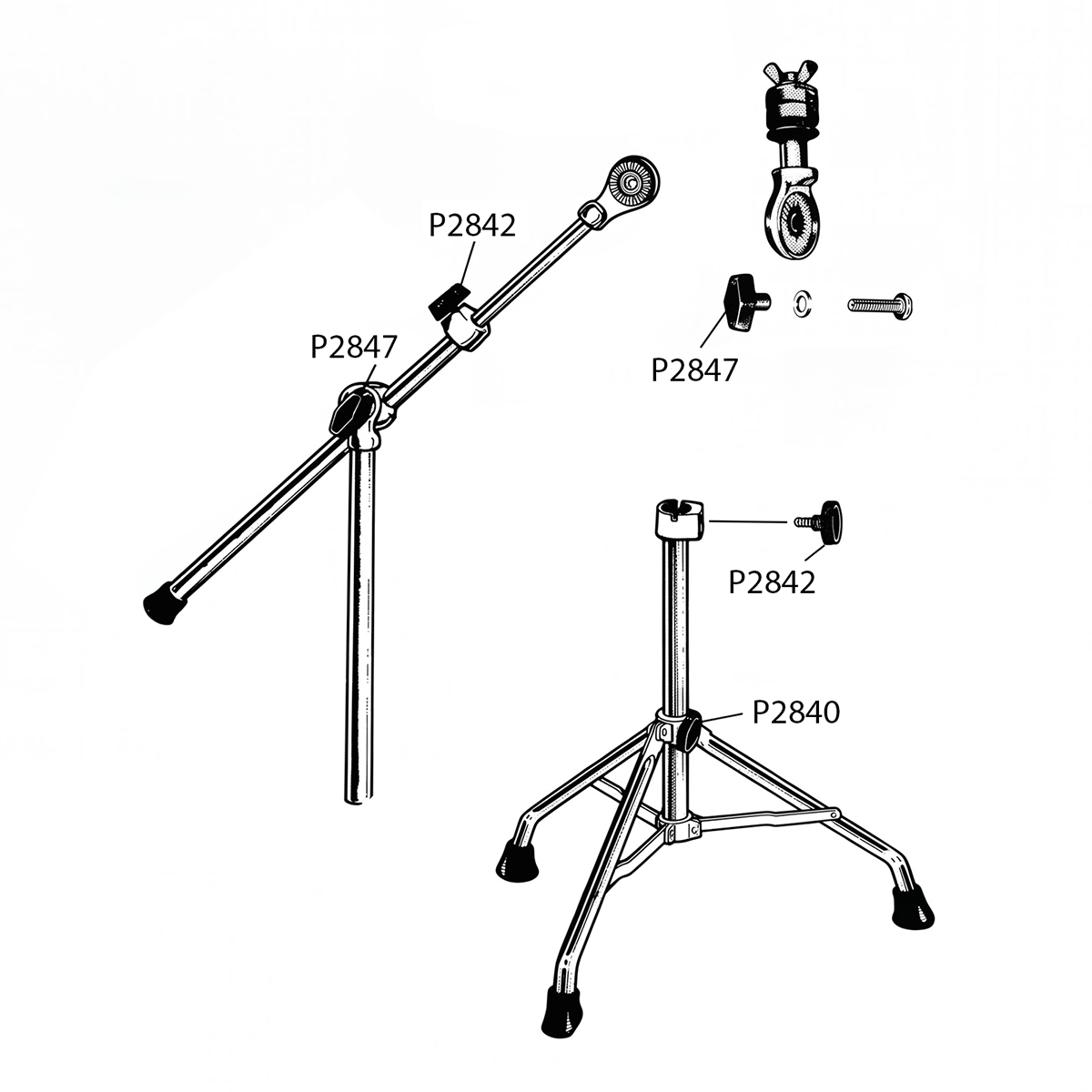

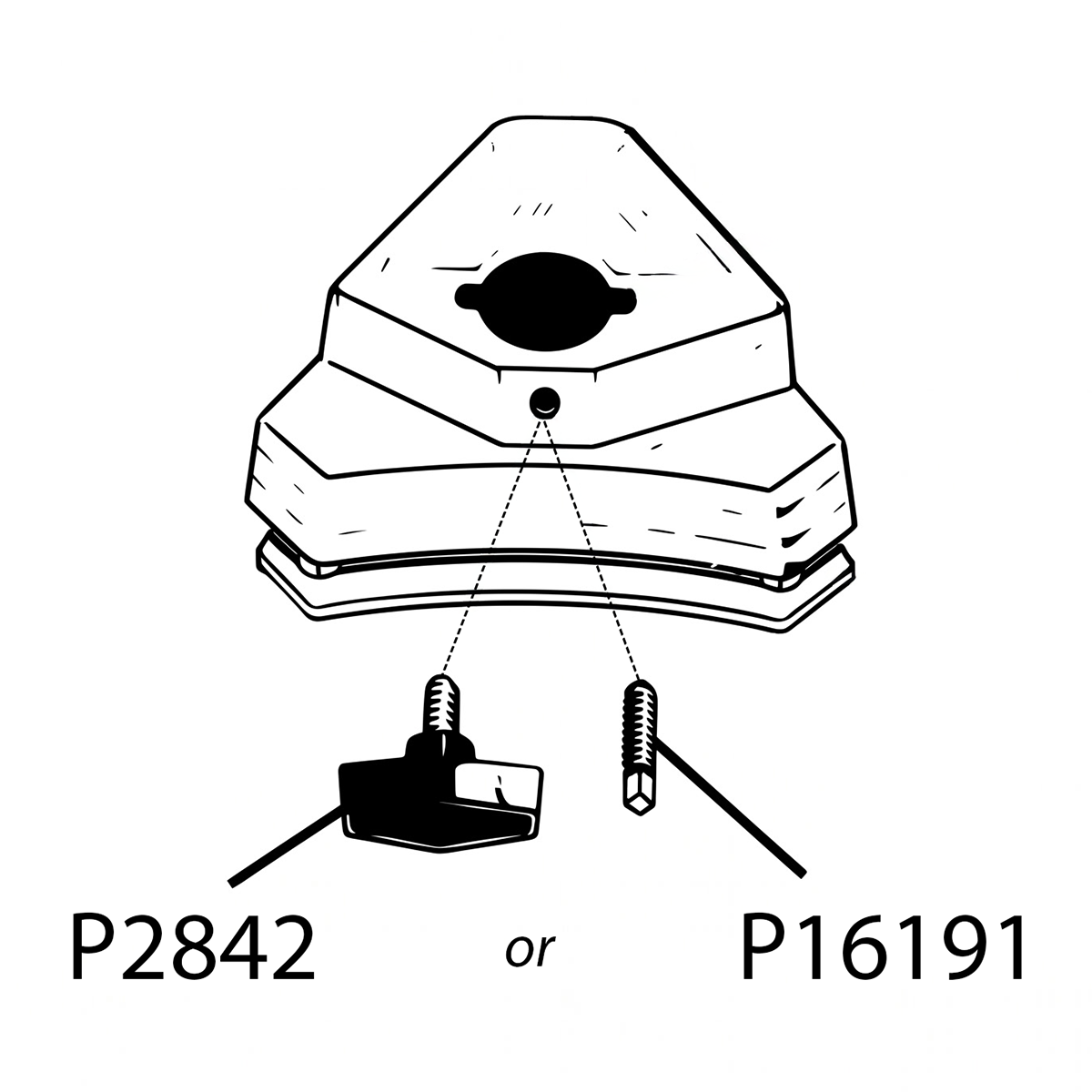

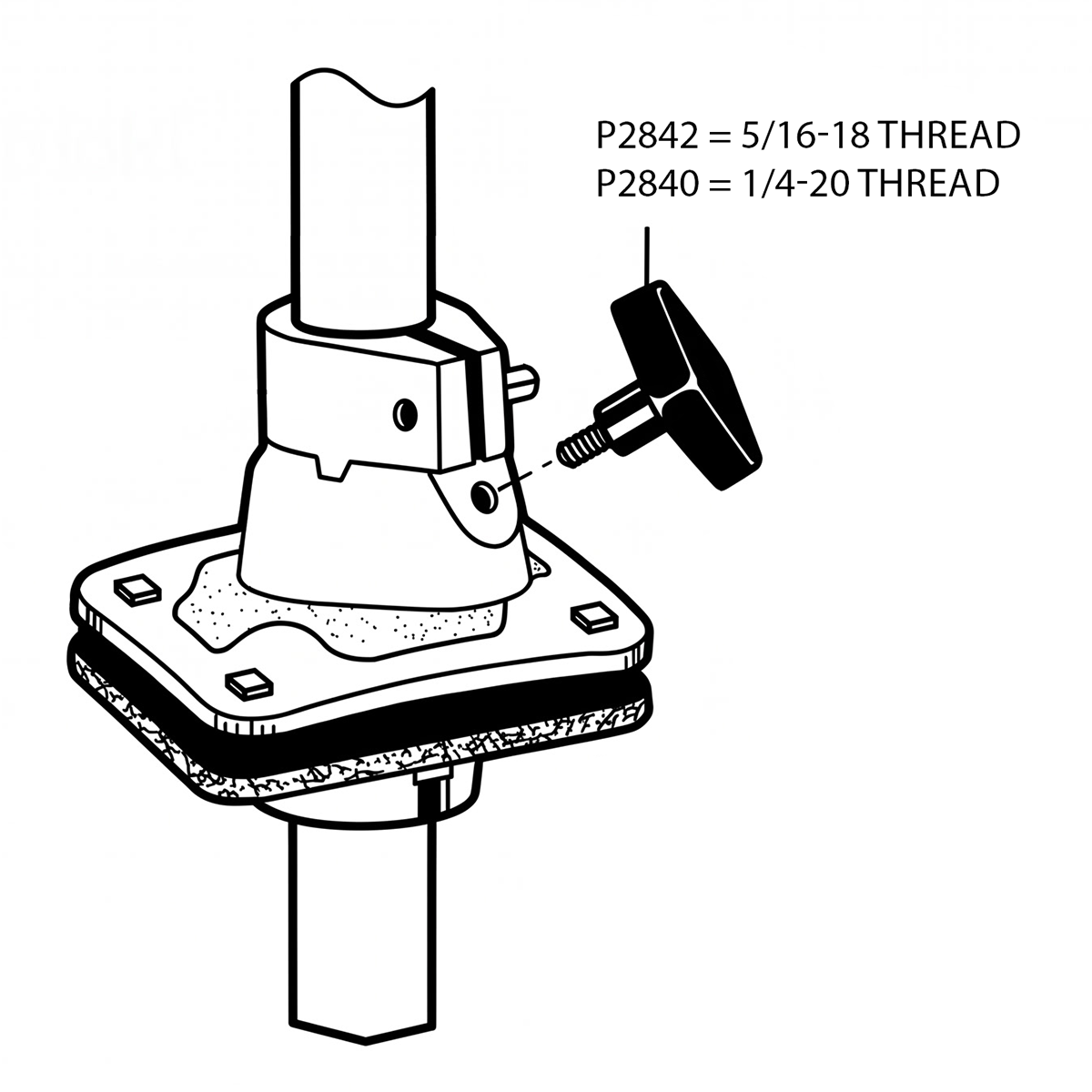

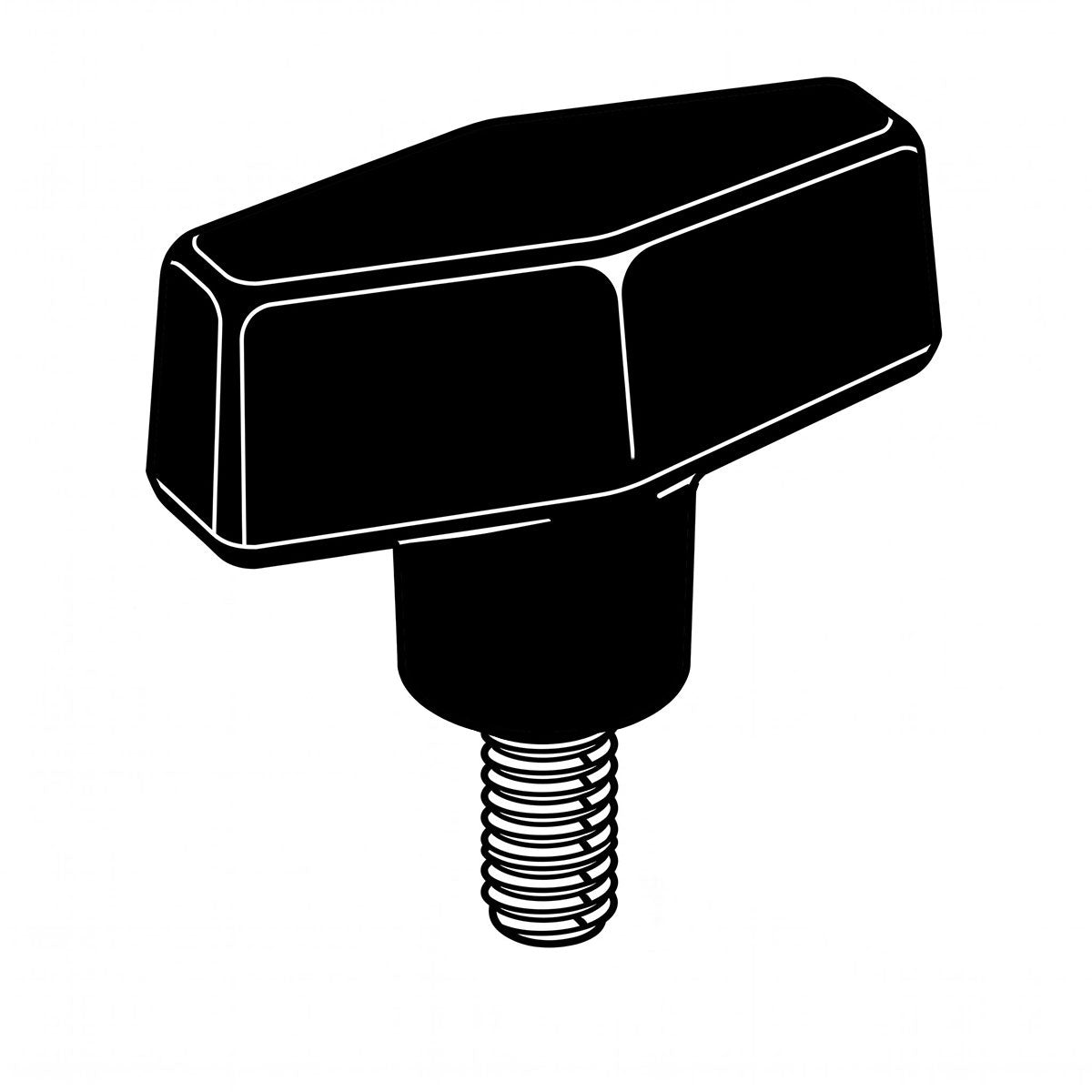

| P2842 | 5/16-18 × 3/4" | Male wing bolt | Used for the height-adjustment joint on most Hercules stands, and also found on some Ludwig Modular hardware and brackets. |

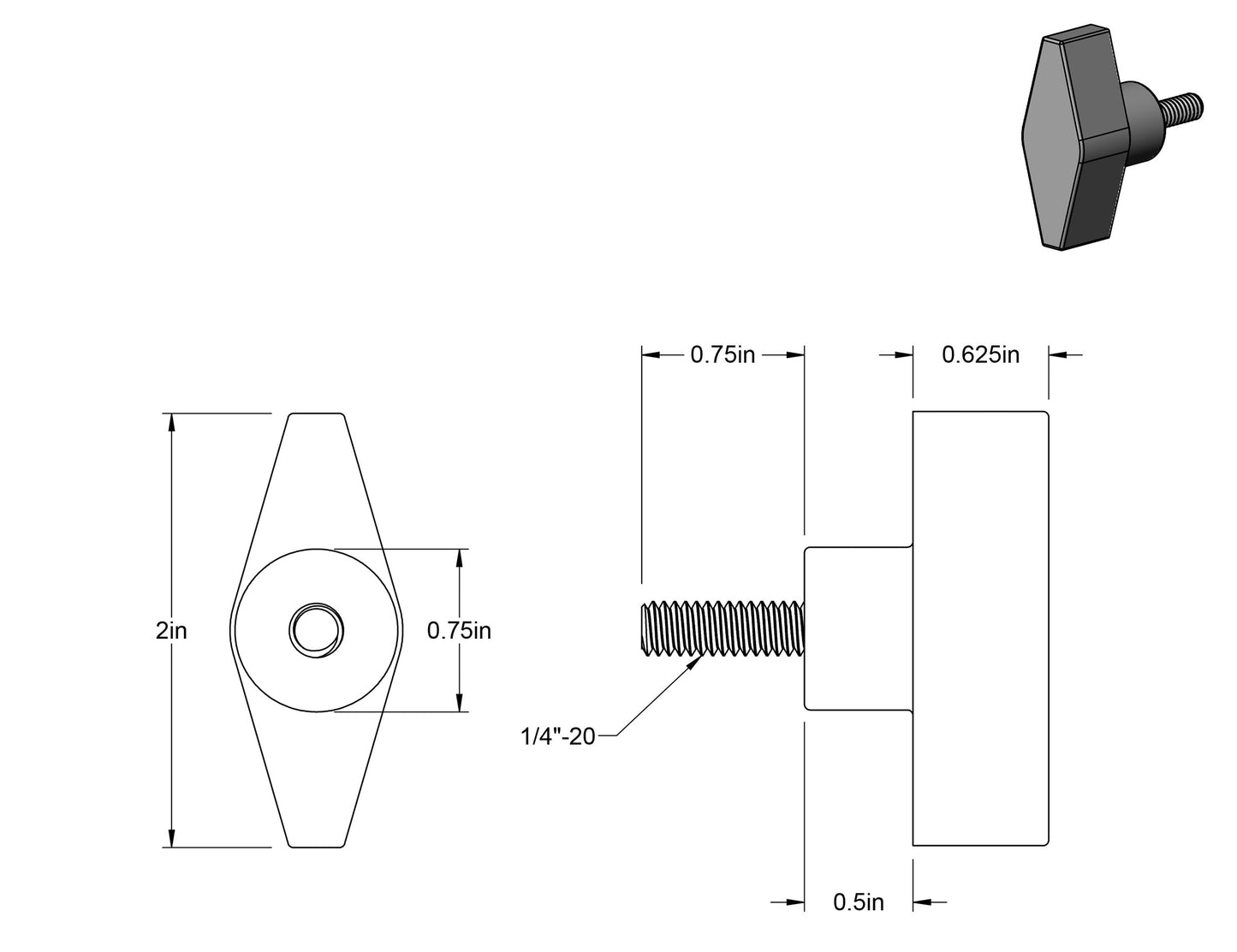

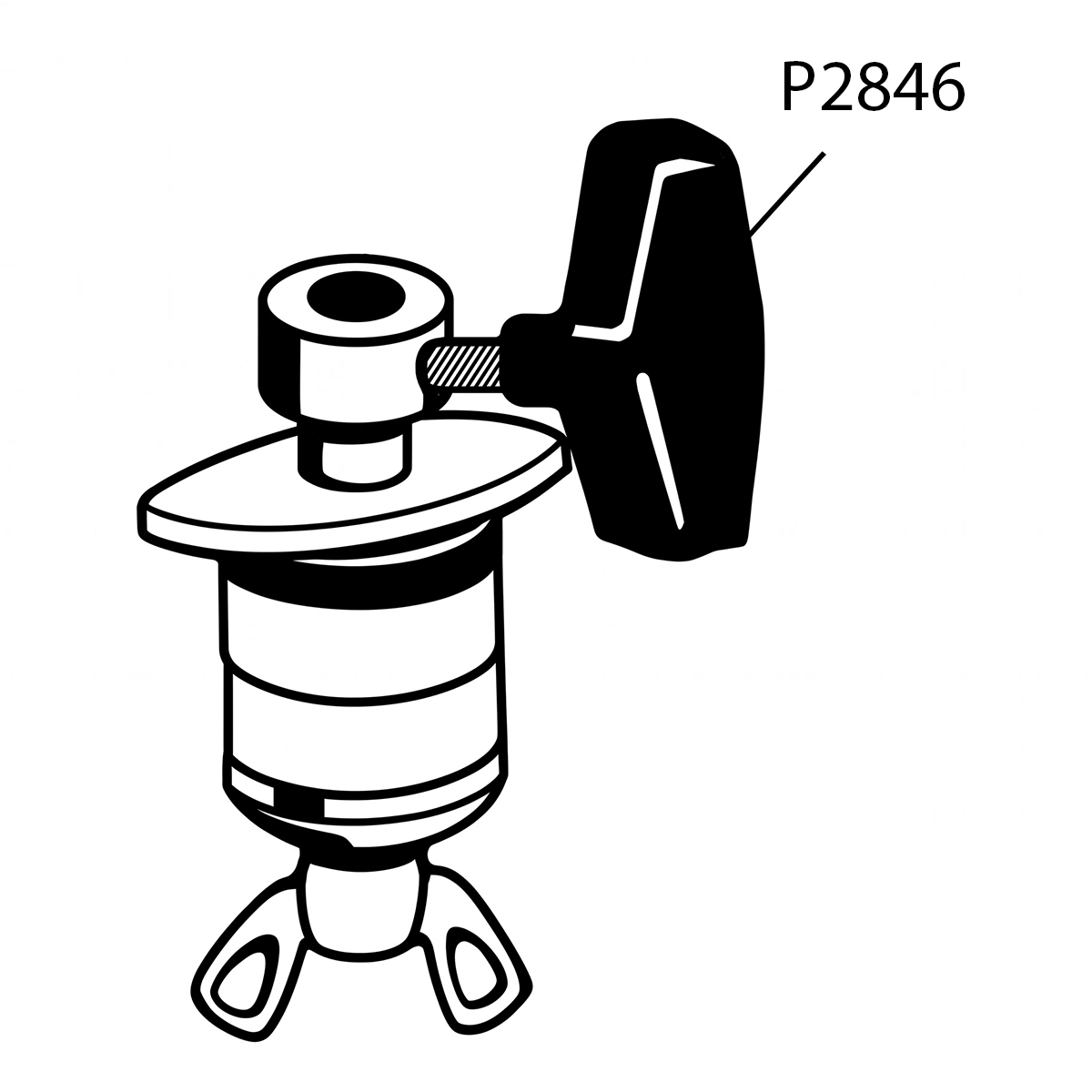

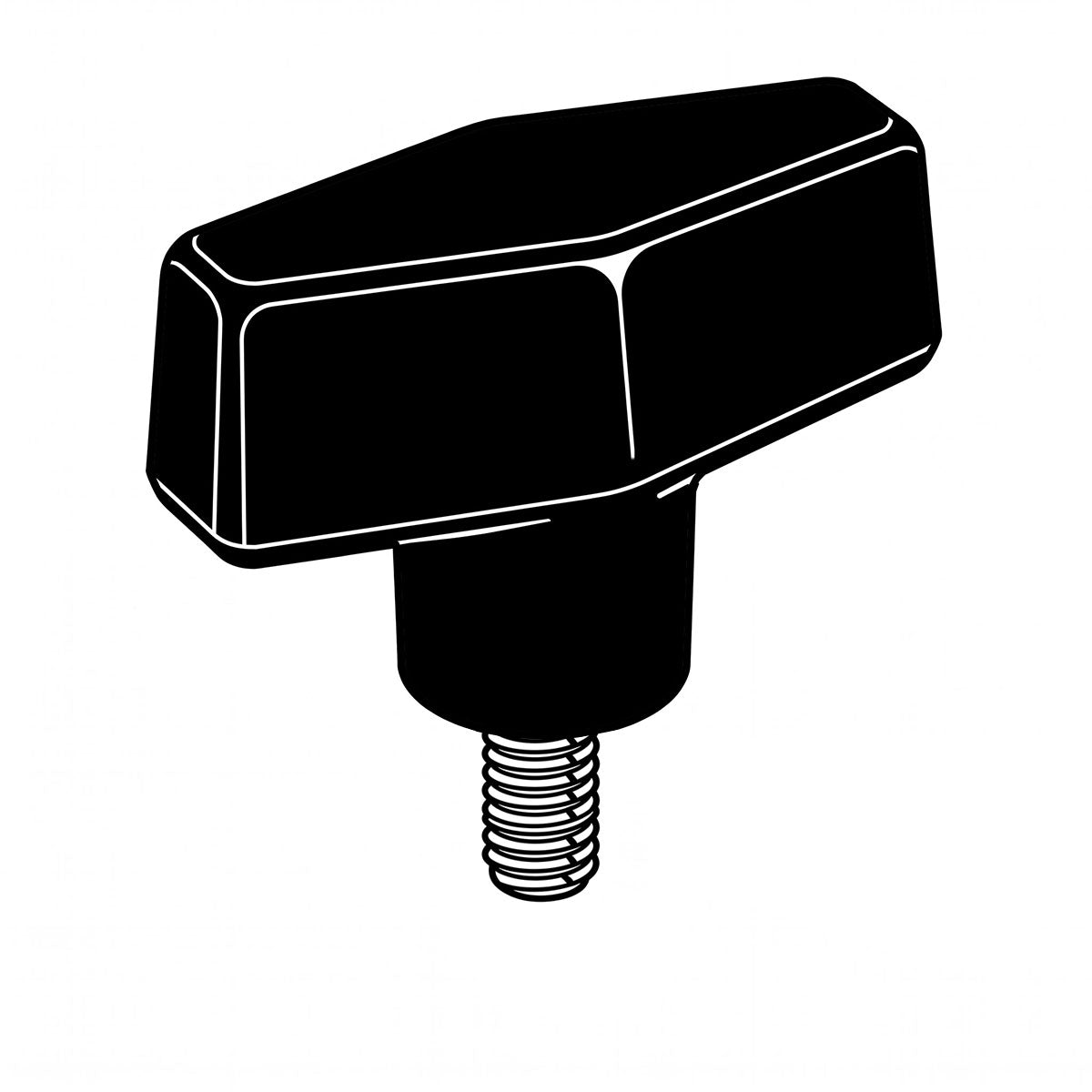

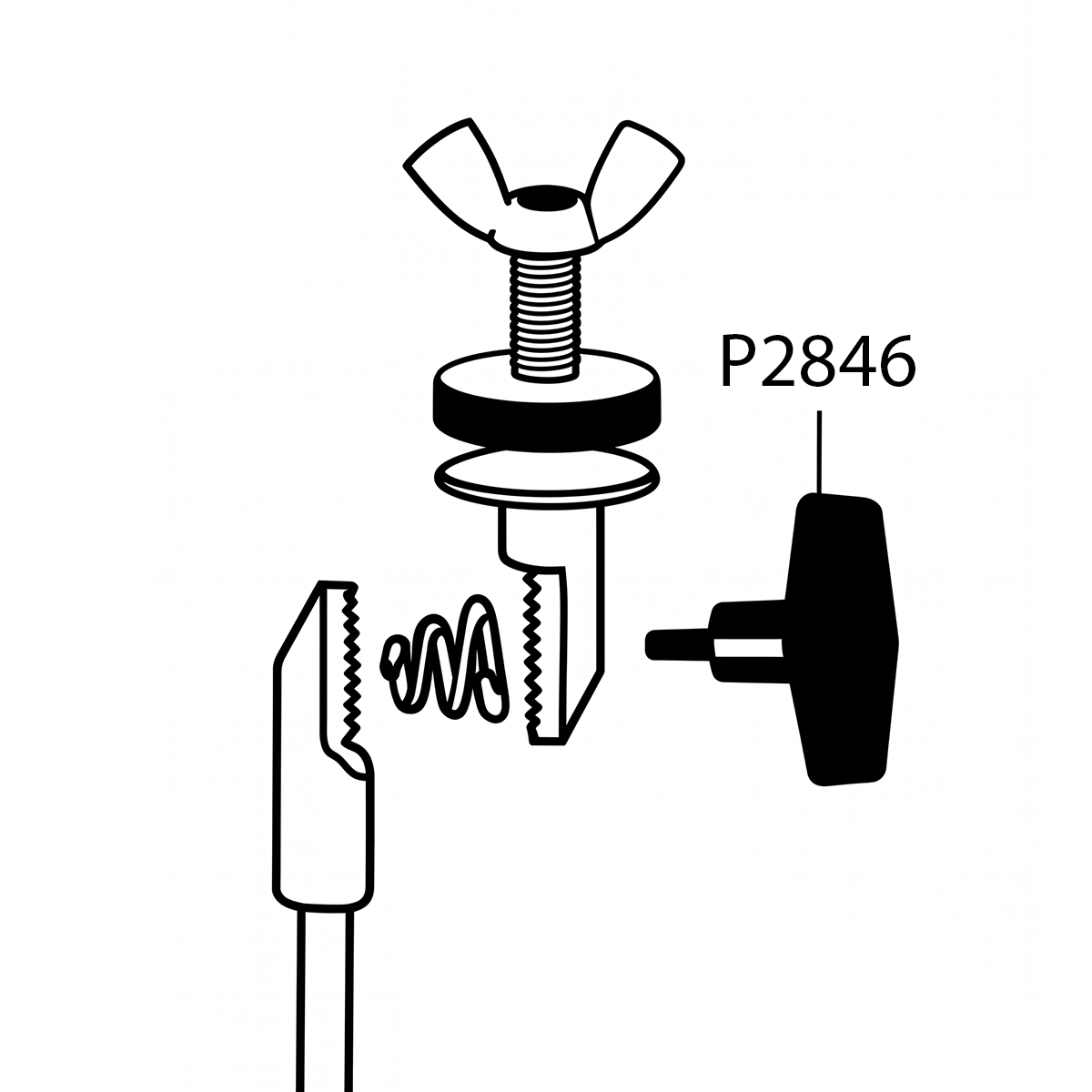

| P2846 | 1/4-20 × 9/16" | Male wing bolt | Used on the 2503 hi-hat clutch and other parts requiring a short bolt, including the cowbell U-clamp. Also used for the tilter on 1370 and 1372 cymbal holders. * This part can often be substituted for the P2840 where the longer 1" bolt is not required. |

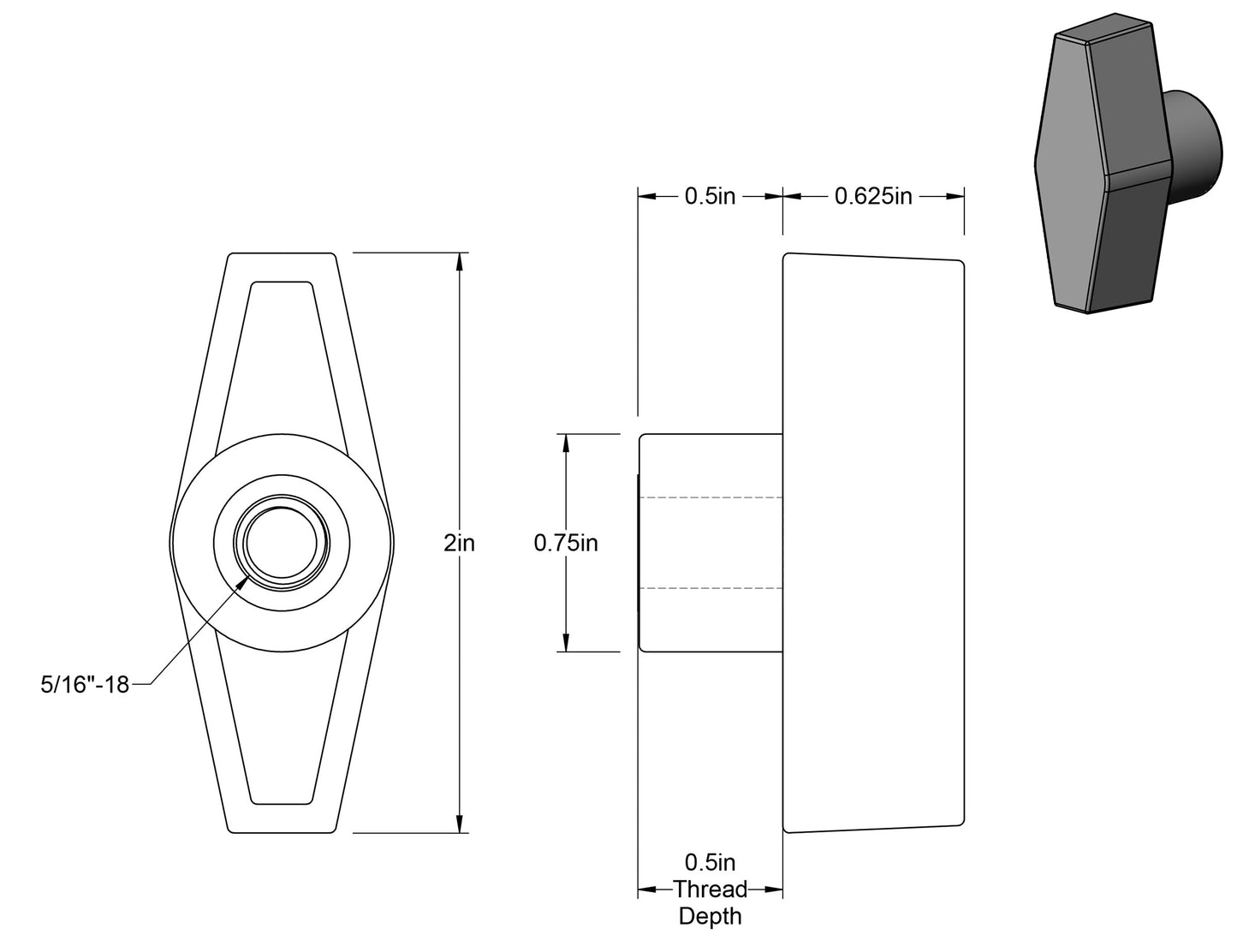

| P2847 | 5/16-18 | Female wing nut | Used on many Ludwig tilters with the P232 carriage bolt, and included as part of the P232B wing nut, washer, and carriage bolt assembly. |
